cmake-commands

参见:

• cmake-commands manual; 安装CMake后,在本地安装目录下也能够找到manual.

Scripting Commands

cmake_minimum_required

指定工程要求的CMAKE最低版本

• 语法

  cmake_minimum_required(VERSION major.minor[.patch[.tweak]])

• 示例

  cmake_minimum_required(VERSION 2.8.11)


  project

设置工程名.

• 语法

  project(ProjectName [LanguageName])

  project(ProjectName
     [VERSION major[.minor[.patch[.tweak]]]]
     [DESCRIPTION ProjectDescription]
     [HOMEPAGE_URL URLString]
     [LANGUAGES LanguageName…])

• 说明
  • VERSION : 版本号.
  • DESCRIPTION : 详细描述
  • HOMEPAGE_URL : 主页
  • LANGUAGES : 开发语言(CXX, )
• 示例

  project(CERTI CXX)


  include

从文件或模块中加载并运行CMake代码.

??默认的加载目录为: C:/Program Files/CMake/share/cmake-3.20/mudules.

• 语法

  include(file | module [OPTIONAL]
      [RESULT_VARIABLE VariableName]
      [NO_POLICY_SCOPE])

• 说明

  • OPTIONAL : 如果文件或模块不存在, 不会产生错误.
  • RESULT_VARIABLE :

# ${CMAKE_ROOT} = C:/Program Files/CMake/share/cmake-3.20
include(${CMAKE_ROOT}/Modules/Dart.cmake)

# Load Checker macros
# 在${CMAKE_MODULE_PATH}目录下能够找到: CheckFunctionExists.cmake文件
include(CheckFunctionExists)
# 在${CMAKE_MODULE_PATH}目录下能够找到: CheckLibraryExists.cmake文件
include(CheckLibraryExists)

# 以下两种写法都行
include(Dart.cmake)
include(Dart)

if

• 语法

  if(<condition>)
    <commands>
  elseif(<condition>) # optional block, can be repeated
    <commands>
  else() # optional block
    <commands>
  endif()

• 示例

  # New Policy for full path library search
  # see cmake --help-policy CMP0003
  if(COMMAND CMAKE_POLICY)
    cmake_policy(SET CMP0003 NEW)
  endif(COMMAND CMAKE_POLICY)

  # Display some information on host and target (when cross-compiling)
  if (CMAKE_CROSSCOMPILING)
    message(STATUS "Cross-compiling build.")
  else (CMAKE_CROSSCOMPILING)
    message(STATUS "Native build.")
  endif (CMAKE_CROSSCOMPILING)

  # Test 32/64 bits
  if("${CMAKE_SIZEOF_VOID_P}" EQUAL "8")
    ...
  endif()

  # Test Endianess
  include(TestBigEndian)
  TEST_BIG_ENDIAN(BIG_ENDIAN)
  if(BIG_ENDIAN)
    ...
  endif(BIG_ENDIAN)

  if (NOT BUILD_LEGACY_LIBRTI AND WIN32)
   ...
  endif()

  if (CMAKE_VERSION VERSION_LESS 3.1.3)
  endif()

  if("${CMAKE_C_COMPILER}" MATCHES "clang.*")
  endif()

  IF ("${CMAKE_BINARY_DIR}" STREQUAL "${CMAKE_SOURCE_DIR}")
  endif()


cmake_policy

if(COMMAND CMAKE_POLICY)
  cmake_policy(SET CMP0003 NEW)
endif(COMMAND CMAKE_POLICY)

enable_language

enable_language(C)

mark_as_advanced

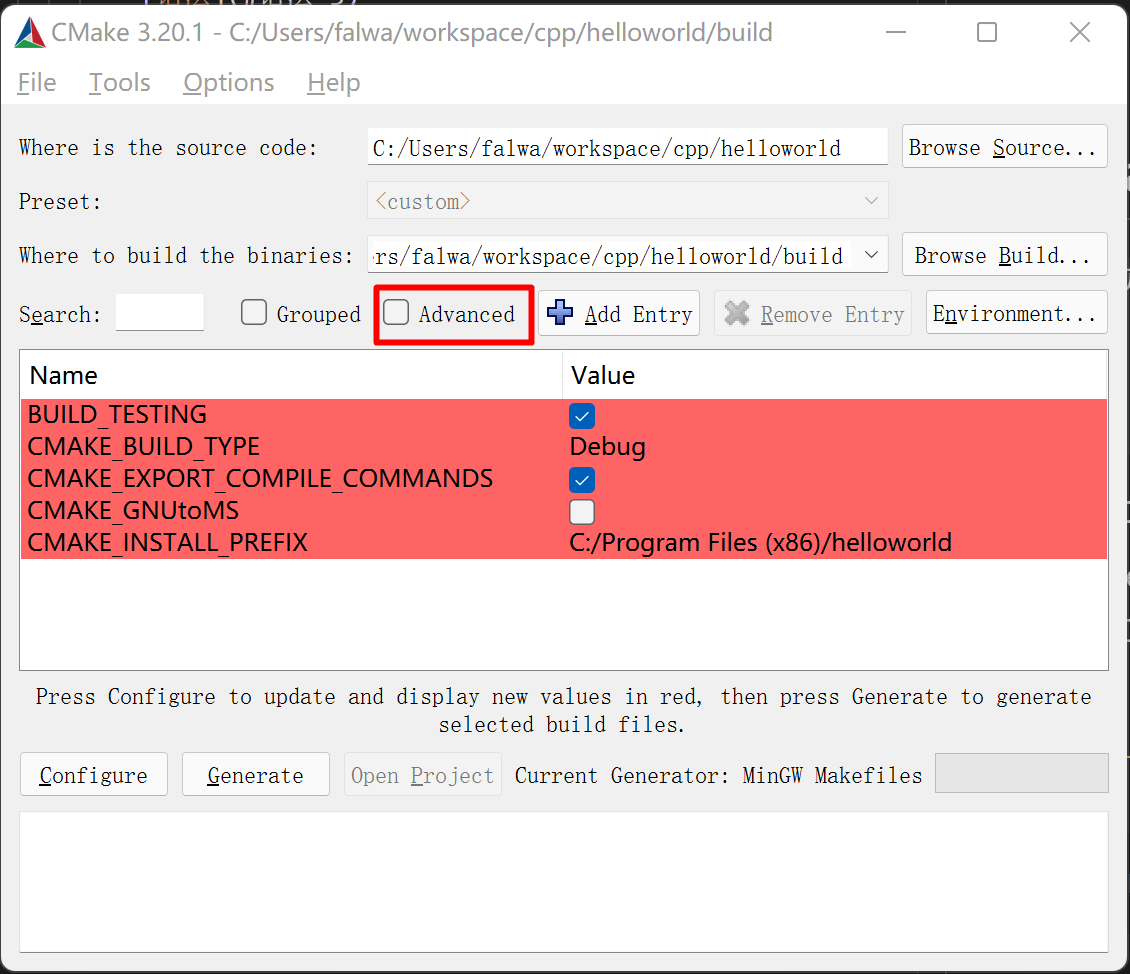

标记此变量为高级, 在cmake-gui中, 当勾选Advanced选项时, 才会显示. 在脚本模式下, 此标记无作用.

• 语法

  mark_as_advanced([CLEAR

  FORCE] <var1> …)

• 示例

  # TCL_TCLSH ??
  mark_as_advanced(TCL_TCLSH DART_ROOT)


  message

记录消息.

• 语法

  • 常规消息

    message([<mode>] “message text” …)

  • Reporting checks

    message(<checkState> “message text” …)

• 说明
  • mode
    • FATAL_ERROR : 致命错误. 停止处理和生成.
    • SEND_ERROR : 错误. 继续处理,但不生成.
    • WARNING : 警告. 可以继续向下处理.
    • NOTICE : 打印到stderr的重要消息, 以引起用户的注意. 省略mode时,为此.
    • STATUS : 状态.
    • VERBOSE : 冗余.
    • DEBUG : 调试.
    • TRACE : 跟踪.
• 示例

  # Display some information on host and target (when cross-compiling)
  if (CMAKE_CROSSCOMPILING)
    message(STATUS "Cross-compiling build.")
  else (CMAKE_CROSSCOMPILING)
    message(STATUS "Native build.")
  endif (CMAKE_CROSSCOMPILING)


set

给普通变量、缓存变量或环境变量赋值.

Set Normal Variable

• 语法 set(<variable> <value>… [PARENT_SCOPE])

• 示例

  # Use CERTI specific CMake modules first
  set(CMAKE_MODULE_PATH ${PROJECT_SOURCE_DIR}/scripts)

  SET(PACKAGE_NAME      "CERTI")
  SET(PACKAGE_VERSION_MAJOR "4")
  SET(PACKAGE_VERSION_MINOR "0")
  SET(PACKAGE_VERSION_PATCH "0")
  SET(PACKAGE_VERSION   "${PACKAGE_VERSION_MAJOR}.${PACKAGE_VERSION_MINOR}.${PACKAGE_VERSION_PATCH}")


  Set Cache Entry

Set Environment Variable

Project Commands

add_compile_definitions

将预处理宏定义添加到源文件的编译命令中.

• 语法

  add_compile_definitions(<definition> …)

• 示例

  add_compile_definitions(FOO BAR)
  # 等价于 add_definitions(-DFOO -DBAR)


add_definitions

添加预处理宏定义. 建议使用add_compile_definitions替代.

• 语法

  add_definitions(-DFOO -DBAR …)

  生成如下命令:

  ....g++.exe -DFOO -DBAR -g -o ....main.cpp.obj -c ...\\main.cpp

  enable_language

在 CMake 中启用对某种语言的支持, 如: CXX, C, CUDA, OBJC, OBJCXX, Fortran, HIP, ISPC, and ASM.

• 语法

  enable_language(<lang> [OPTIONAL])

• 示例:

  enable_language(C)


  参见: enable_language

CTest Commands

Deprecated Commands

cmake-variables

ENV

读取环境变量的操作符.

$ENV{VAR}

读取PATH
message($ENV{PATH})

# 判断 变量环境变量PATH是否存在
if(DEFINED ENV{PATH})
